MAXIMUM TEMPERATURE: 200°F MAXIMUM PRESSURE: 150 PSI Flow Rate: 12.5 GPM @ 150 PSI Weight: 3.2 lbs.
Our Model (S151SSTR) Temperature Indicating Stainless Steel Series Spray Nozzles are designed with a an easy to read stainless steel dial thermometer located at the rear of the nozzle for accurate and continual monitoring of the water temperature. The temperature gauge is recessed into the rubber cover for complete protection. This feature alerts the operator of possible elevated water temperatures at discharge. (No more trying to read dials from far away — the temperature dial is in the operators hand). The nozzle's all stainless steel construction ensures reliable performance and extended product life. For use on corrosive applications and DI water where bronze and aluminum are not suitable. Features a variable spray pattern that adjusts from a soft spray to a solid stream simply by depressing the lever. The rear mounted lever helps ease operation during extended periods of use and reduces finger cramping. Stainless Steel Seats come standard on all of our Nozzles.
|
Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247

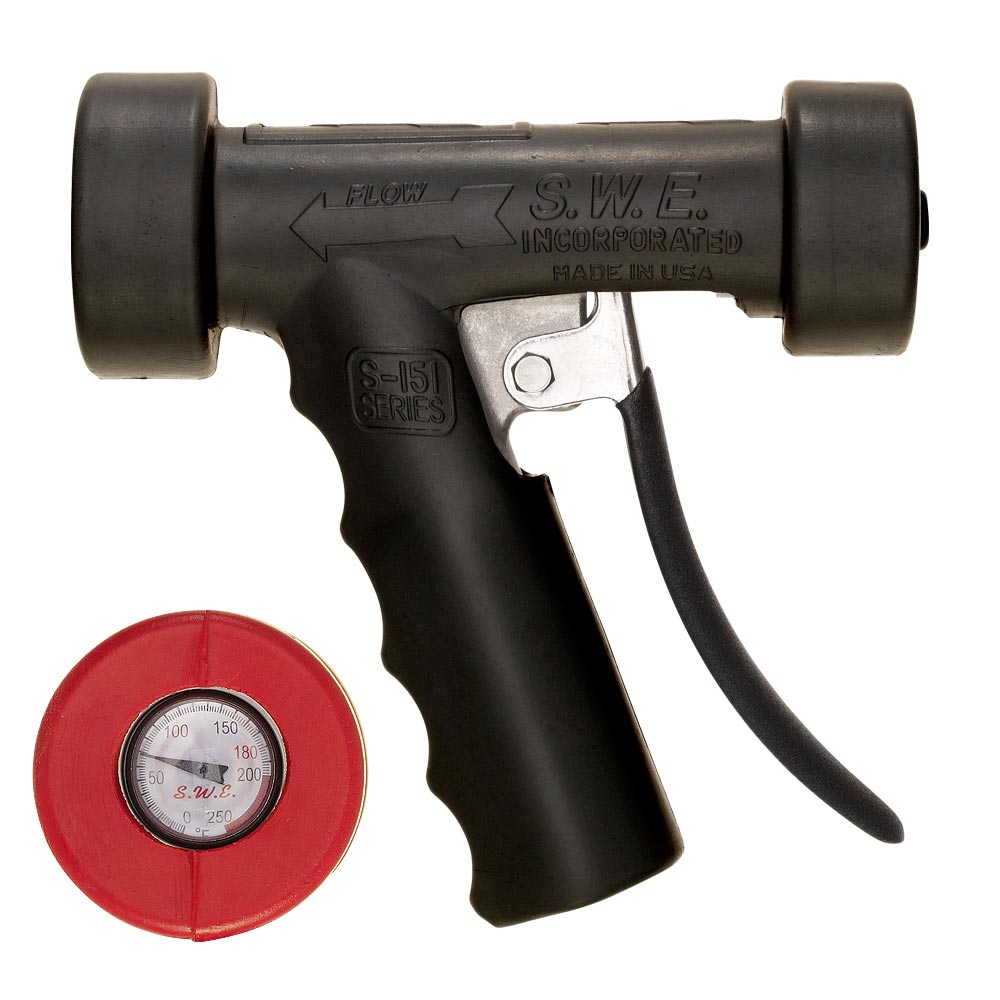

MODEL #
S151SSTRB
NOZZLE S151SSTRB All
300 Series Stainless
Steel Construction,
Temperature Indicating
Industrial Grade Spray
Nozzle with a Dial
Thermometer recessed
at the rear of the Nozzle
and a Black Dura Guard
Rubber Cover
MODEL #
S151SSTRR
NOZZLE S151SSTRR All
300 Series Stainless
Steel Construction,
Temperature Indicating
Industrial Grade Spray
Nozzle with a Dial
Thermometer recessed
at the rear of the Nozzle
and a Red Dura Guard
Rubber Cover

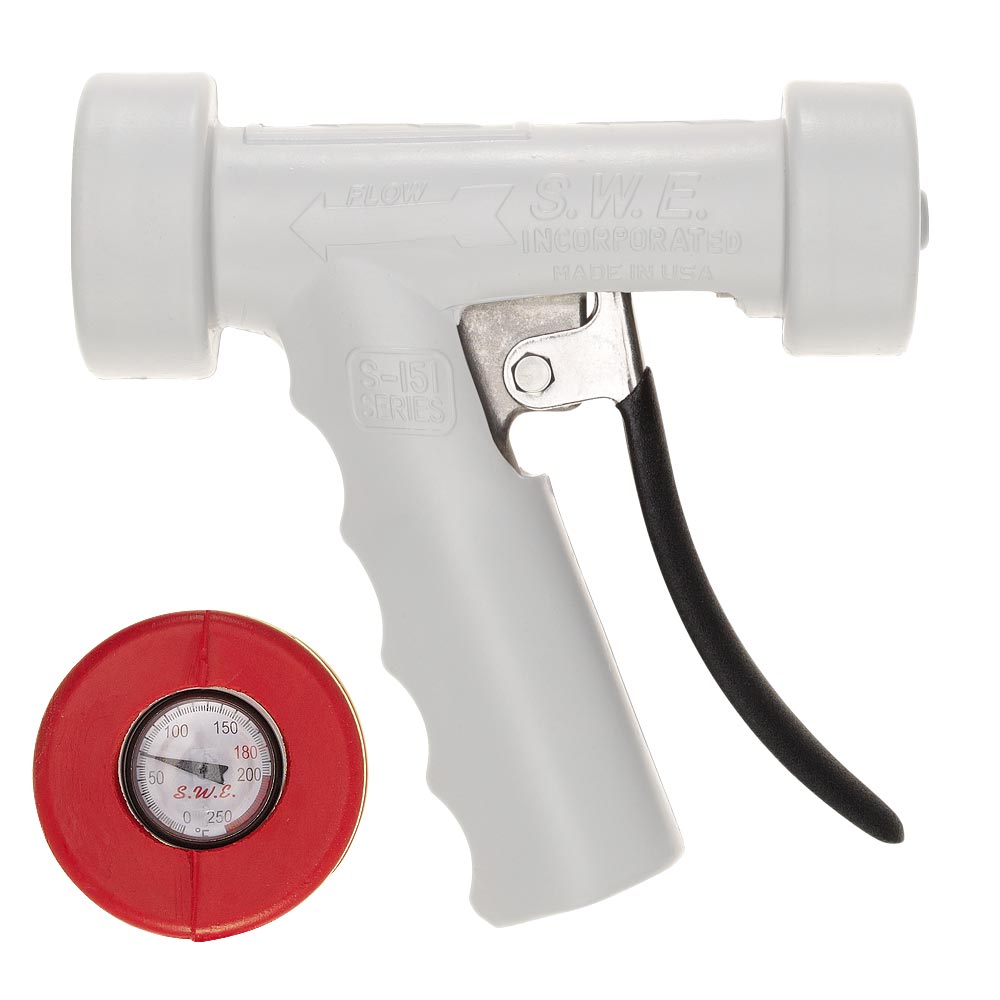

MODEL #
S151SSTRW
NOZZLE S151SSTRW All
300 Series Stainless
Steel Construction,
Temperature Indicating
Industrial Grade Spray
Nozzle with a Dial
Thermometer recessed
at the rear of the Nozzle
and a White Dura Guard
Rubber Cover
Nozzles
Temperature Indicating Stainless Steel Spray Nozzle and adaptors

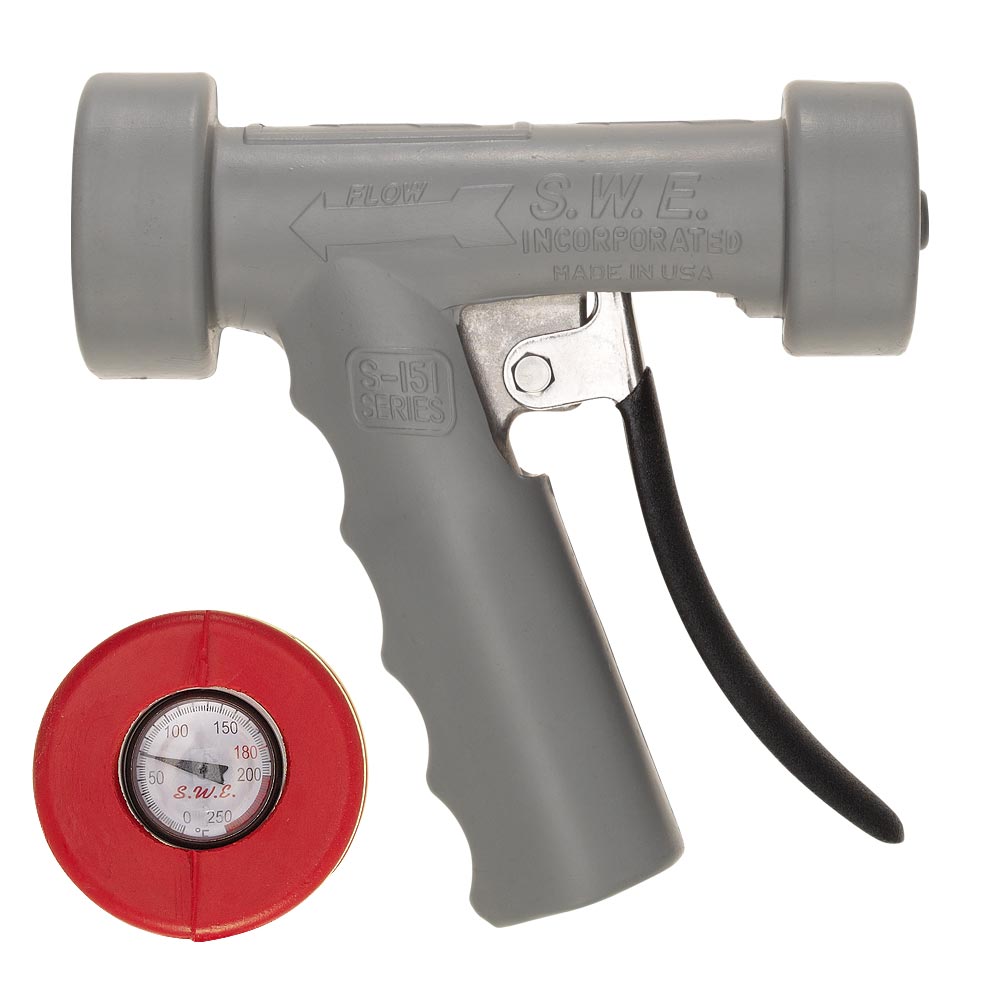

NOZZLE S151SSTRG All
300 Series Stainless
Steel Construction,
Temperature Indicating
Industrial Grade Spray
Nozzle with a Dial
Thermometer recessed
at the rear of the Nozzle
and a Grey Dura Guard
Rubber Cover
MODEL #
S151SSTRG

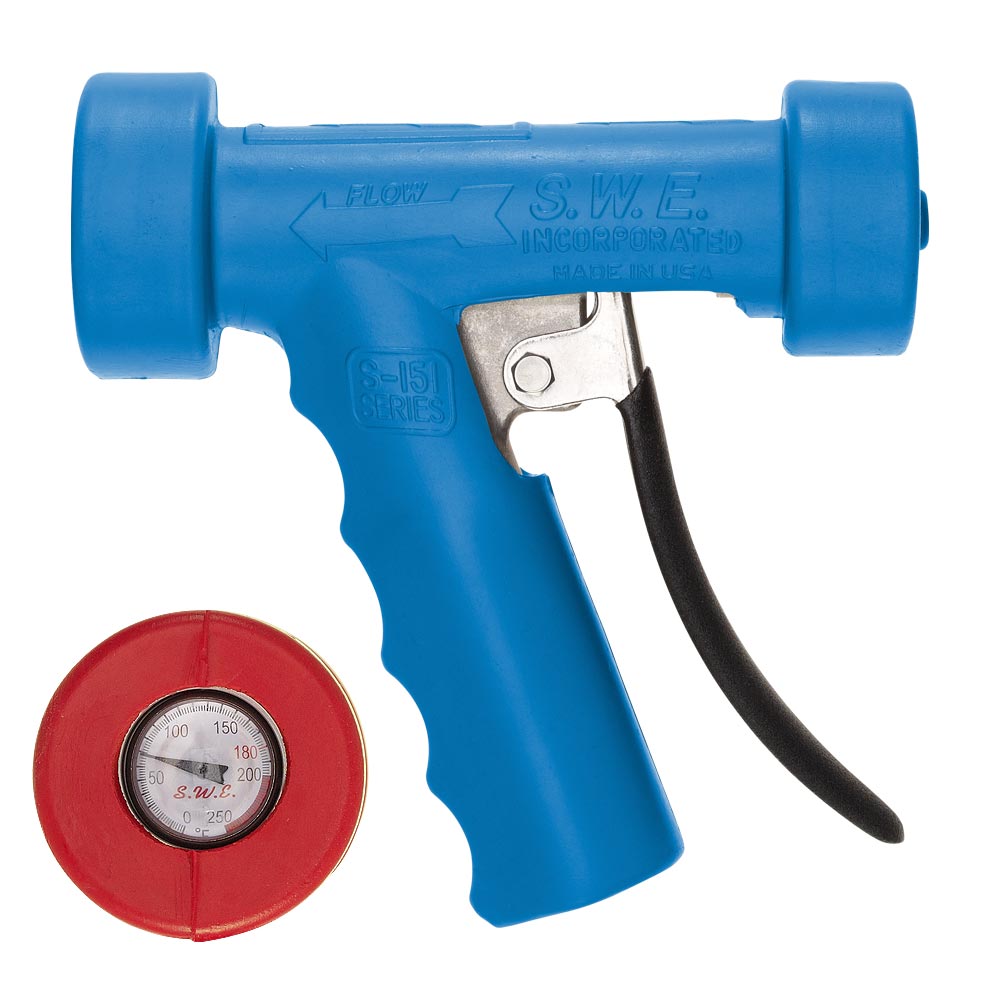

MODEL #
S151SSTRBL
NOZZLE S151SSTRBL All
300 Series Stainless
Steel Construction,
Temperature Indicating
Industrial Grade Spray
Nozzle with a Dial
Thermometer recessed
at the rear of the Nozzle
and a Blue Dura Guard
Rubber Cover
We offer hose adaptors in both swivel and non swivel configurations. When you attach our spray nozzle
to a hose assembly, using a swivel adaptor, it allows the nozzle to rotate 360 degrees independently of
the hose thereby promoting easier use of the hose and nozzle assembly and helps eliminate twisting
and kinking. Our swivel hose adaptors are available in brass and stainless steel construction, and in all
stainless steel. The swivel adaptors are available for 1/2", 5/8", and 3/4" I.D. hose, and 3/4" FGHT. The
non swivel adaptors are constructed in plated steel and are available for 3/4" and 5/8" I.D. hose. We
also offer a non swivel adaptor constructed in all stainless steel for 3/4" I.D. hose. If you do not see an
adaptor suited for your particular application, please call, fax or email and in most cases we can supply
your needs.
Adaptors for the S151SS Series Nozzle
GHTSSS
|
S151SSTR Series Stainless Steel Spray Nozzle with GHTS (Garden Hose) Swivel Adaptor
|
|

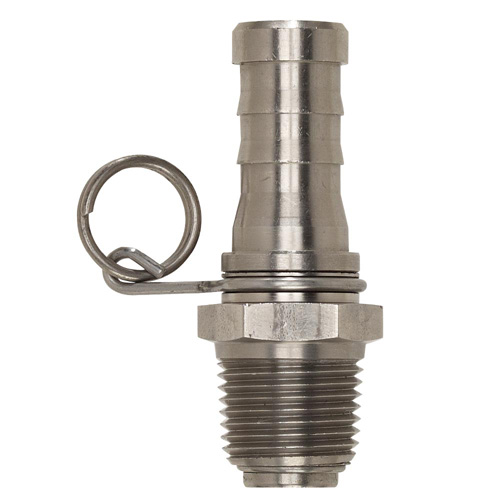

625SSS
|
S151SSTR Series Stainless Steel Spray Nozzle with 625S Barb Swivel Fitting
|
|
50SSS
|
S151SSTR Series Stainless Steel Spray Nozzle with 50S Barb Swivel Fitting
|
|
75NSSS
|
S151SSTR Series Stainless Steel Spray Nozzle with 75NS Barb Fitting
|
|
|
|
S151SSTRBGHTSSS Black Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRB) with a Hose Adaptor (GHTSSS) 1/2 NPT X 3/4 Female Garden Hose Thread (All Stainless Steel) 360 Swivel and a Black Dura Guard Rubber Cover
|
S151SSTRRGHTSSS Red Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRR) with a Hose Adaptor (GHTSSS) 1/2 NPT X 3/4 Female Garden Hose Thread (All Stainless Steel) 360 Swivel and a Red Dura Guard Rubber Cover
|
S151SSTRWGHTSSS White Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRW) with a Hose Adaptor (GHTSSS) 1/2 NPT X 3/4 Female Garden Hose Thread (All Stainless Steel) 360 Swivel and a White Dura Guard Rubber Cover
|
S151SSTRBLGHTSSS Blue Covert
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRBL) with a Hose Adaptor (GHTSSS) 1/2 NPT X 3/4 Female Garden Hose Thread (All Stainless Steel) 360 Swivel and a Blue Dura Guard Rubber Cover
|
S151SSTRGGHTSSS Grey Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRG) with a Hose Adaptor (GHTSSS) 1/2 NPT X 3/4 Female Garden Hose Thread (All Stainless Steel) 360 Swivel and a Grey Dura Guard Rubber Cover
|
|
|
|
S151SSTRB50SSS Black Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRB) with a Hose Adaptor (50SSS) 1/2 NPT X1/2 Hose Barb (All Stainless Steel) 360 Swivel and a Black Dura Guard Rubber Cover
|
S151SSTRR50SSS Red Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRR) with a Hose Adaptor (50SSS) 1/2 NPT X1/2 Hose Barb (All Stainless Steel) 360 Swivel and a Red Dura Guard Rubber Cover
|
S151SSTRW50SSS White Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRW) with a Hose Adaptor (50SSS) 1/2 NPT X1/2 Hose Barb (All Stainless Steel) 360 Swivel and a White Dura Guard Rubber Cover
|
S151SSTRBL50SSS Blue Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRBL) with a Hose Adaptor (50SSS) 1/2 NPT X1/2 Hose Barb (All Stainless Steel) 360 Swivel and a Blue Dura Guard Rubber Cover
|
S151SSTRG50SSS Grey Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRG) with a Hose Adaptor (50SSS) 1/2 NPT X1/2 Hose Barb (All Stainless Steel) 360 Swivel and a Grey Dura Guard Rubber Cover
|
|
|
|
S151SSTRB625SSS Black Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRB) with a Hose Adaptor (625SSS) 1/2 NPT X 5/8 Hose Barb (All Stainless Steel) 360 Swivel and a Black Dura Guard Rubber Cover
|
S151SSTRR25SSS Red Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRR) with a Hose Adaptor (625SSS) 1/2 NPT X 5/8 Hose Barb (All Stainless Steel) 360 Swivel and a Red Dura Guard Rubber Cover
|
S151SSTRW625SSS White Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRW) with a Hose Adaptor (625SSS) 1/2 NPT X 5/8 Hose Barb (All Stainless Steel) 360 Swivel and a White Dura Guard Rubber Cover
|
S151SSTRBL625SSS Blue Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRBL) with a Hose Adaptor (625SSS) 1/2 NPT X 5/8 Hose Barb (All Stainless Steel) 360 Swivel and a Blue Dura Guard Rubber Cover
|
S151SSTRG625SSS Grey Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRG) with a Hose Adaptor (625SSS) 1/2 NPT X 5/8 Hose Barb (All Stainless Steel) 360 Swivel and a Grey Dura Guard Rubber Cover
|
|
|
|
S151SSTRB75NSS Black Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRB) with a Hose Adaptor (75NSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) NON SWIVEL and a Black Dura Guard Rubber Cover
|
S151SSTRR75NSS Red Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRR) with a Hose Adaptor (75NSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) NON SWIVEL and a Red Dura Guard Rubber Cover
|
S151SSTRW75NSS White Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRW) with a Hose Adaptor (75NSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) NON SWIVEL and a White Dura Guard Rubber Cover
|
S151SSTRBL75NSS Blue Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRBL) with a Hose Adaptor (75NSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) NON SWIVEL and a Blue Dura Guard Rubber Cover
|
S151SSTRG75NSS Grey Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRG) with a Hose Adaptor (75NSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) NON SWIVEL and a Grey Dura Guard Rubber Cover
|
|
The stainless steel model is recommended for use on D. I. Water and other corrosive applications where bronze and aluminum are not suitable.
|
Streamline Washdown Equipment, Inc.
STANDARD SIZE NOZZLES 1/2" inlet

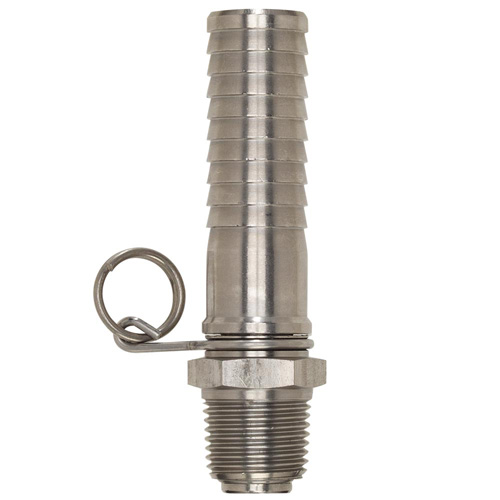

75SSS
|
S151SSTR Series Stainless Steel Spray Nozzle with 75S Barb Swivel Fitting
|
|
|
|
S151SSTRB75SSS Black Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRB) with a Hose Adaptor (75SSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) 360 Swivel and a Black Dura Guard Rubber Cover
|
S151SSTRR75SSS Red Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRR) with a Hose Adaptor (75SSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) 360 Swivel and a Red Dura Guard Rubber Cover
|
S151SSTRW75SSS White Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRW) with a Hose Adaptor (75SSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) 360 Swivel and a White Dura Guard Rubber Cover
|
S151SSTRBL75SSS Blue Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRBL) with a Hose Adaptor (75SSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) 360 Swivel and a Blue Dura Guard Rubber Cover
|
S151SSTRG75SSS Grey Cover
|
Temperature Indicating Stainless Steel Industrial Grade Spray Nozzle (S151SSTRG) with a Hose Adaptor (75SSS) 1/2 NPT X 3/4 Hose Barb (All Stainless Steel) 360 Swivel and a Grey Dura Guard Rubber Cover
|
|
KNOW YOUR WATER TEMPERATURE
KEEP SAFETY FIRST
IF YOU ARE USING 180° F WATER TO KILL BACTERIA AS
REQUIRED BY THE USDA AND FDA, YOU NEED TO BE SURE THAT
THE DISCHARGE WATER TEMPERATURE IS IN FACT 180° F.
THE WATER TEMPERATURE SHOWN ON THE HOSE STATION IS
NEVER THE ACTUAL DISCHARGE WATER TEMPERATURE.
OPERATOR SAFTEY
THE ONLY WAY TO BE SURE THE
DISCHARGE WATER TEMPERATURE IS TO
TAKE A READING AT DISCHARGE; IN OTHER
WORDS, AT THE NOZZLE.
Flow Rate Data for the Model S151 Nozzles
